Artificial Intelligence
Intermediate
20 mins
Teacher/Student led
165 points
What you need:
Chromebook/Laptop/PC or iPad/Tablet
Webcam/camera

Create an Image Model

In this lesson, you'll create an image model using Google's Teachable Machine to play a rock, paper, scissors game with your webcam!

Note: You will need a webcam or a camera on your computer to create the images for the image model.

Learning Goals Learning Outcomes Teacher Notes

Live Class Feed

This is a live feed of the latest activity by your students on this lesson. It will update in real-time as they work on the lesson.
Load previous activity

    1 - Introduction

    In this lesson, you will create an image model using Google's Teachable Machine to recognise rock, paper and scissors hand gestures.

    Google's Teachable Machine is a tool that allows you to create machine learning models. You'll train the model to recognize different hand gestures for rock, paper, and scissors.

    In another lesson in this course we will use the model to build an AI Rock, Paper, Scissors game.



    2 - Open Teachable Machine

    First we need to open the Google's Teachable Machine website to create our model.

    Click on the Get Started button.


    3 - Create an Image Project

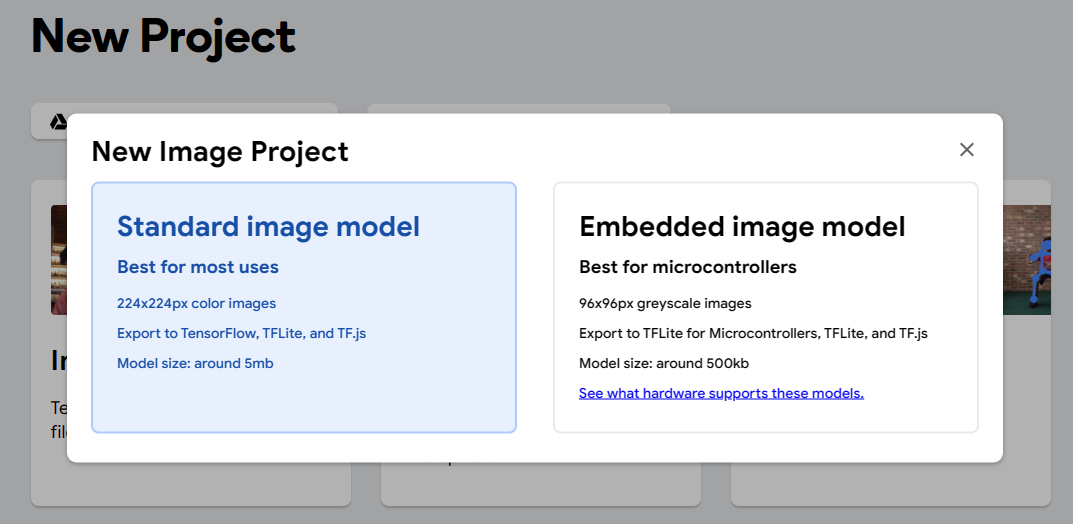

    Click on the Image Project button to create a new image model project, and then click on the Standard image model option.

    This will bring you to the screen where we can create our classes for our image model.

    In an AI image model, a class is a category that the model can recognize. For example, in our rock, paper, scissors game, we will have three classes: rock, paper, and scissors. The AI will learn to recognize images of each class and be able to tell them apart.



    4 - Create the Classes

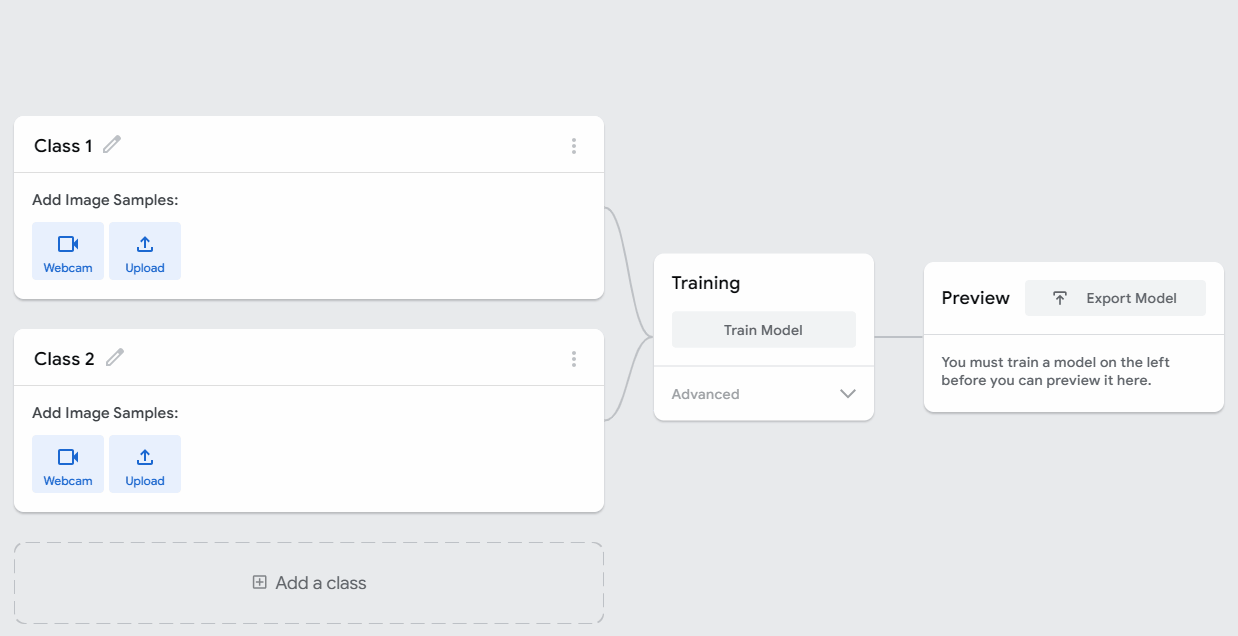

    There will be two classes already added to your model called 'Class 1' and 'Class 2'.

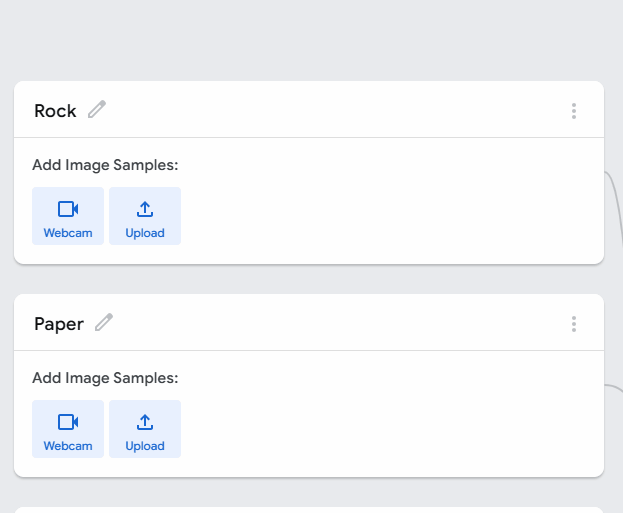

    Add a third class by clicking on the 'Add a class' button and then rename your classes to:

    • Rock
    • Paper
    • Scissors

    5 - Add Images to the Rock Class

    Now let's create and add the images for the rock gesture to the Rock class.

    1. Click on the Webcam button in the Rock class. This should start using your webcam (you may need to click to allow permissions).
    2. Put your hand in the frame of the camera and make a rock gesture, then click on the 'Hold to Record' button. This will take several quick pictures of your hand.
    3. Repeat this a few times with your hand in different positions but still doing the rock gesture.
    4. Remove any images that show your hand doing the rock gesture. Remember the better quality images we give our model, the better it will perform.
